Jet Wheels racing rims.
High quality cast aluminium rims that go through a rigorous process of heat treatment, precision CNC machining and pressure testing for a high level of performance on the race track.
FIA Karting rim standardisationSilver or blackBearings & valves fittedBead retaining screws available
Bearing-fitted rims
7 partsMount straight onto the stub axle. Supplied with 6003RS bearings and valves fitted.
JW-105SOS
105mm Super Offset
- Width
- 105mm
- Diameter
- 5"
- Bearings
- 2 × 6003RS
OptionsBlack Powder Coat

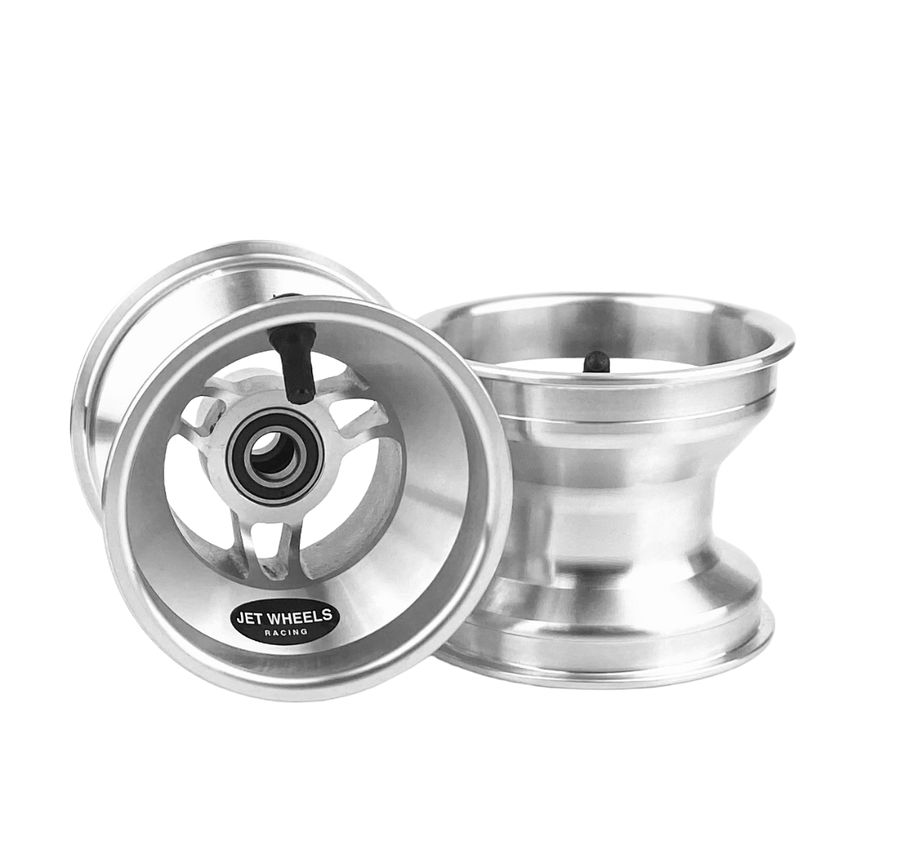

JW-115OSEVO
115mm Offset 3 Spoke
- Width
- 115mm
- Diameter
- 5"
- Design
- 3 spoke
- Bearings
- 2 × 6003RS
OptionsBlack Powder Coat

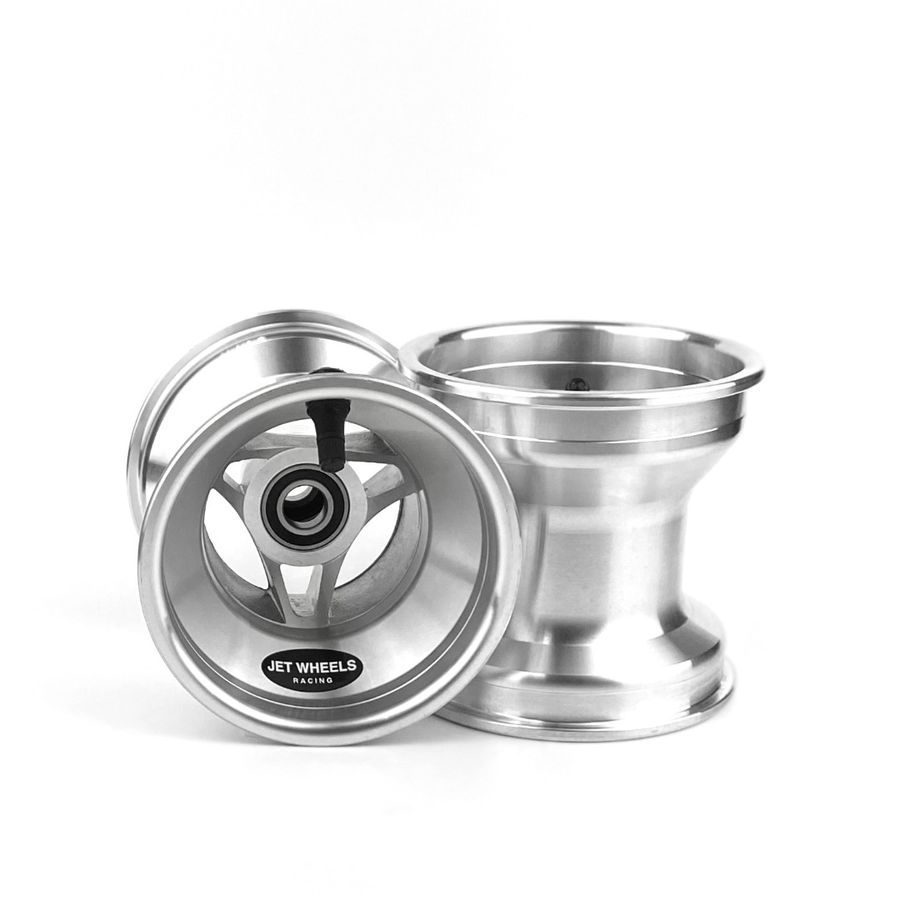

JW-130OSEVO
130mm Offset 3 Spoke
- Width
- 130mm
- Diameter
- 5"
- Design
- 3 spoke
- Bearings
- 2 × 6003RS
OptionsBlack Powder CoatDrilled for Bead Retainers
Hub-mount rims
11 parts40mm location, 58mm PCD. Many can be drilled for bead retainers.

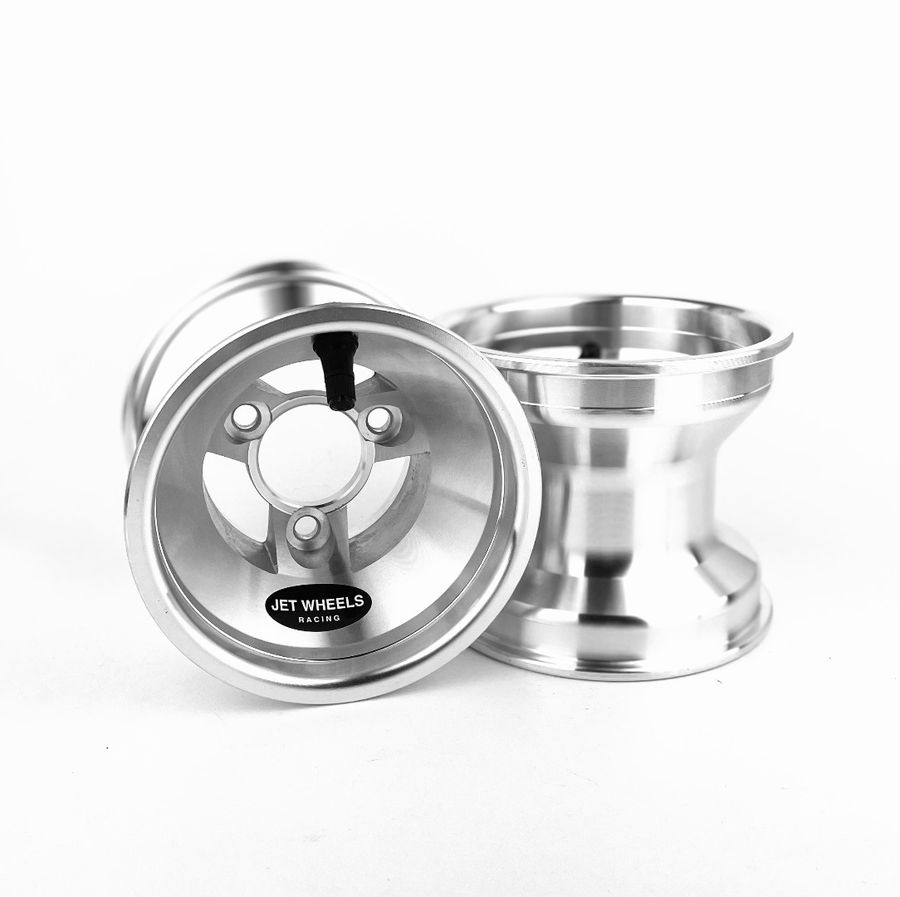

JW-115EVO
115mm 3 Spoke
- Width
- 115mm
- Diameter
- 5"
- Design
- 3 spoke
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder Coat

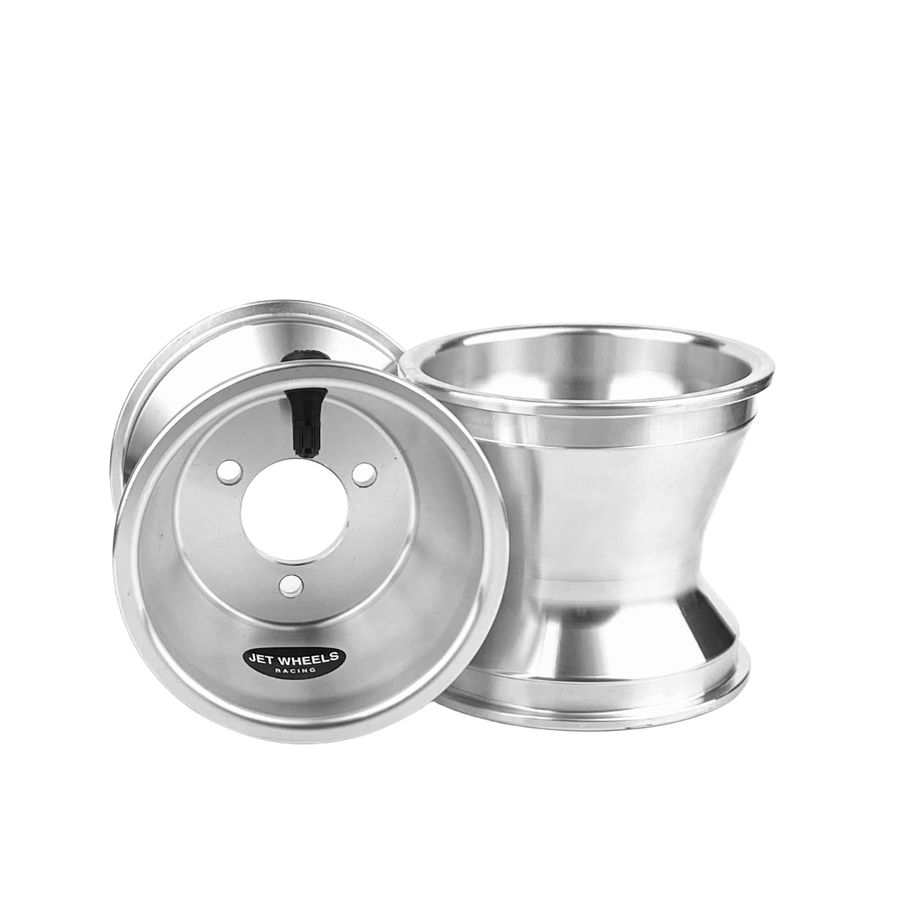

JW-120
120mm
- Width
- 120mm
- Diameter
- 5"
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers
JW-130
130mm
- Width
- 130mm
- Diameter
- 5"
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

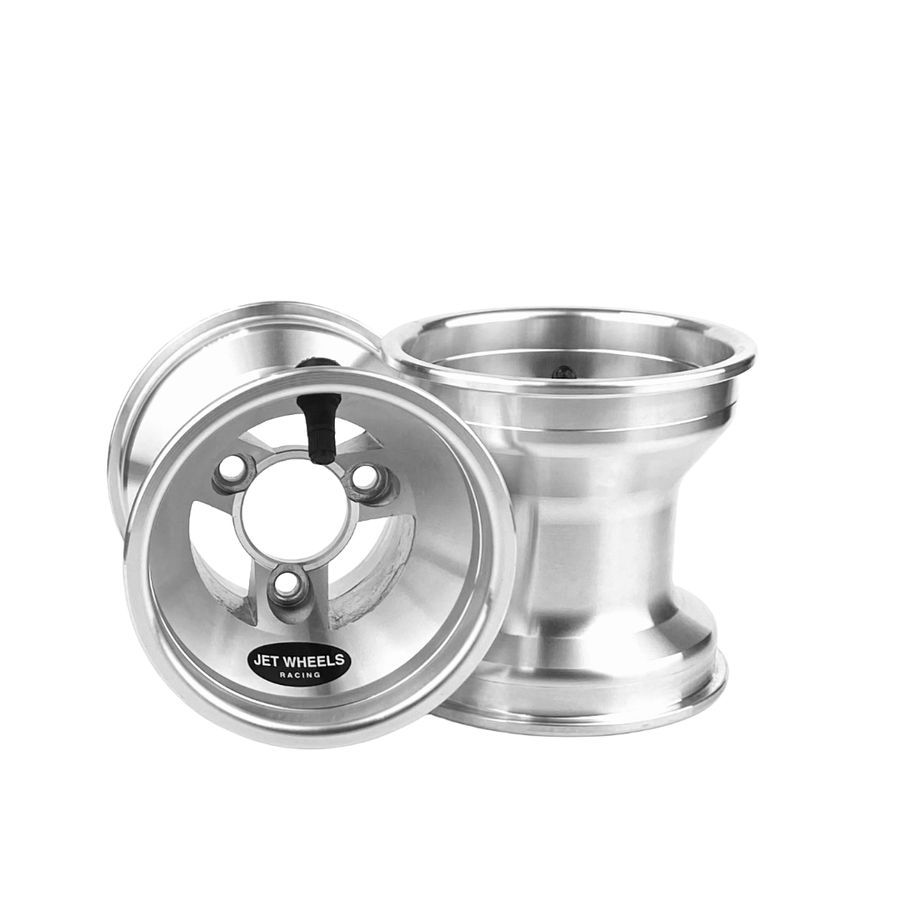

JW-130EVO
130mm 3 Spoke
- Width
- 130mm
- Diameter
- 5"
- Design
- 3 spoke
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

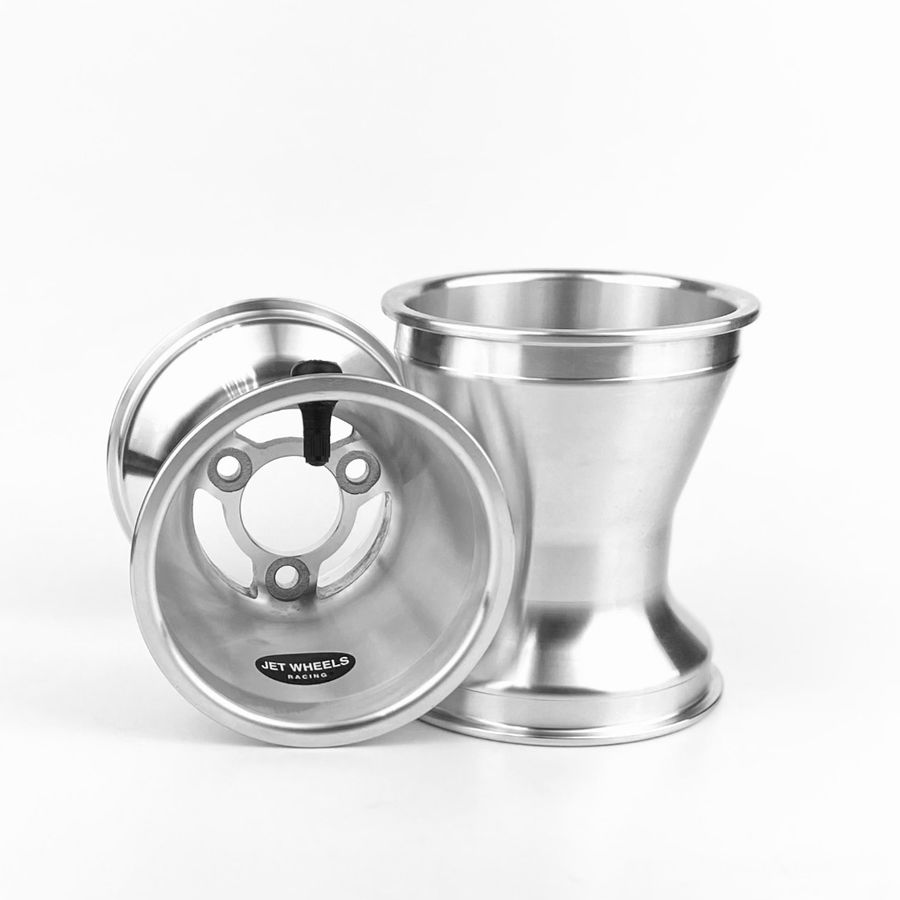

JW-150EVO
150mm 3 Spoke
- Width
- 150mm
- Diameter
- 5"
- Design
- 3 spoke
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder Coat

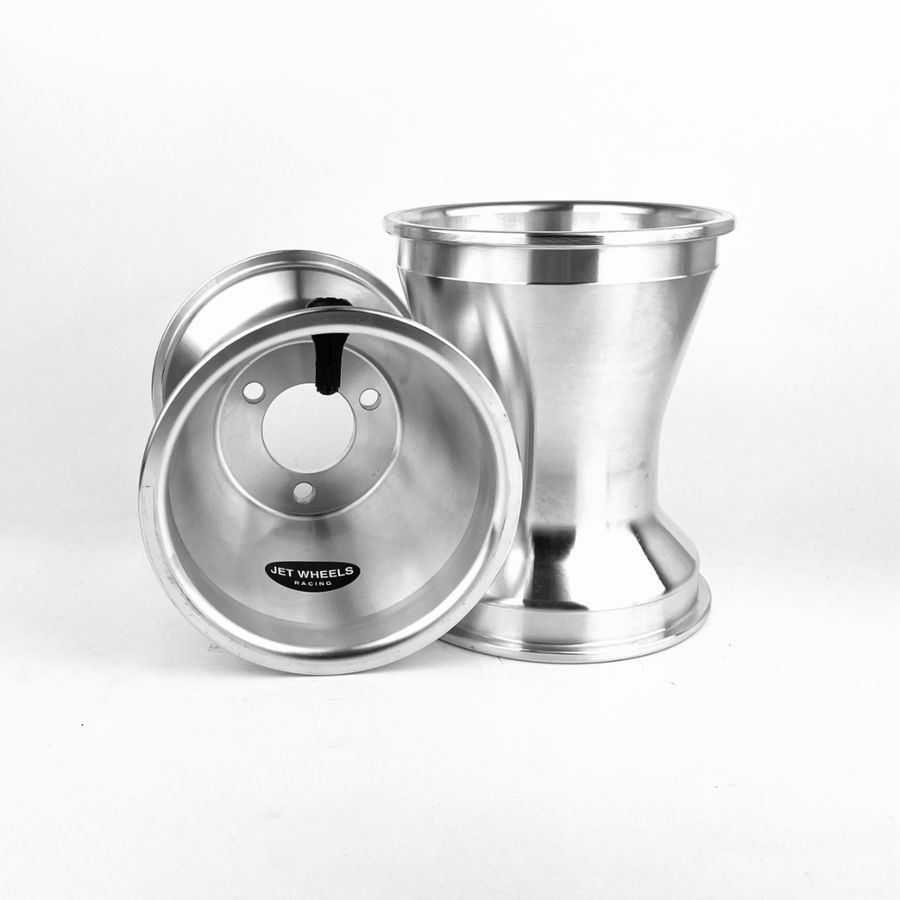

JW-160
160mm
- Width
- 160mm
- Diameter
- 5"
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

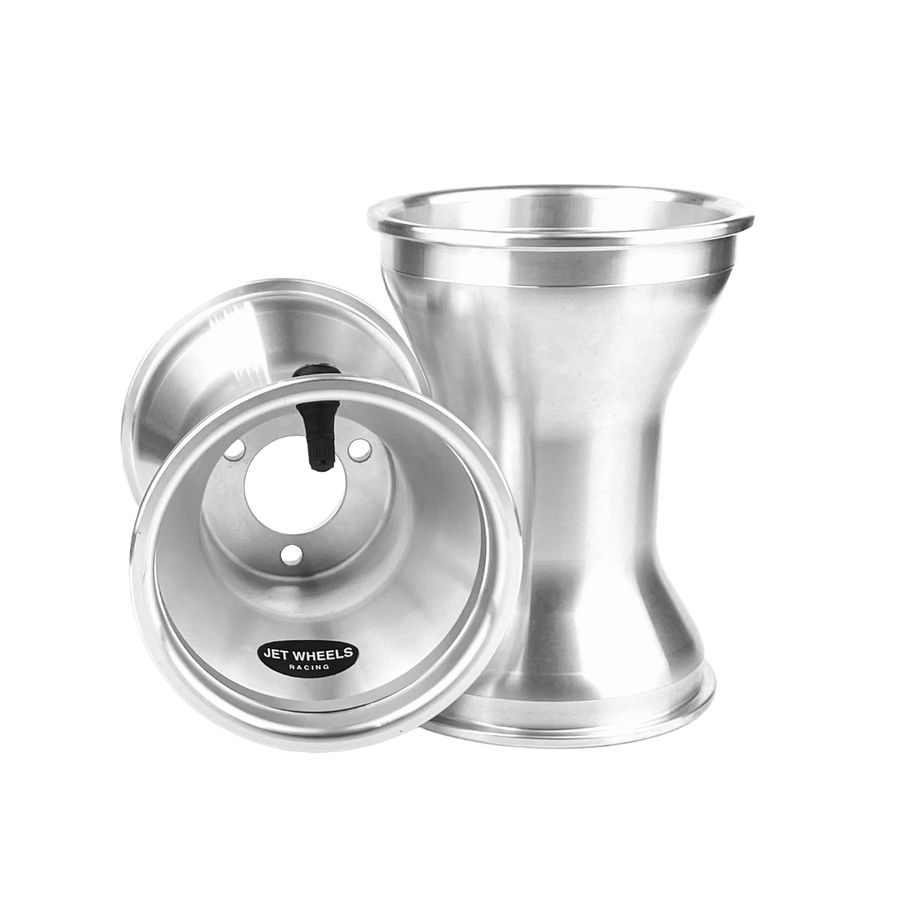

JW-180
180mm
- Width
- 180mm
- Diameter
- 5"
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

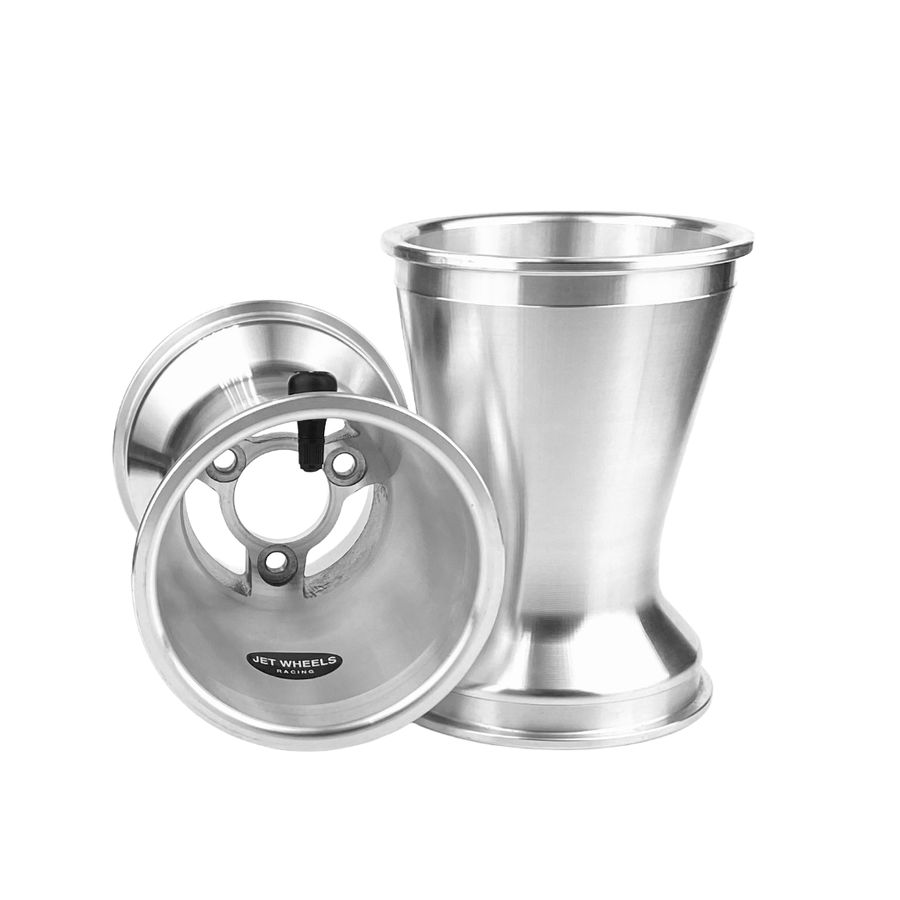

JW-180EVO
180mm 3 Spoke
- Width
- 180mm
- Diameter
- 5"
- Design
- 3 spoke
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

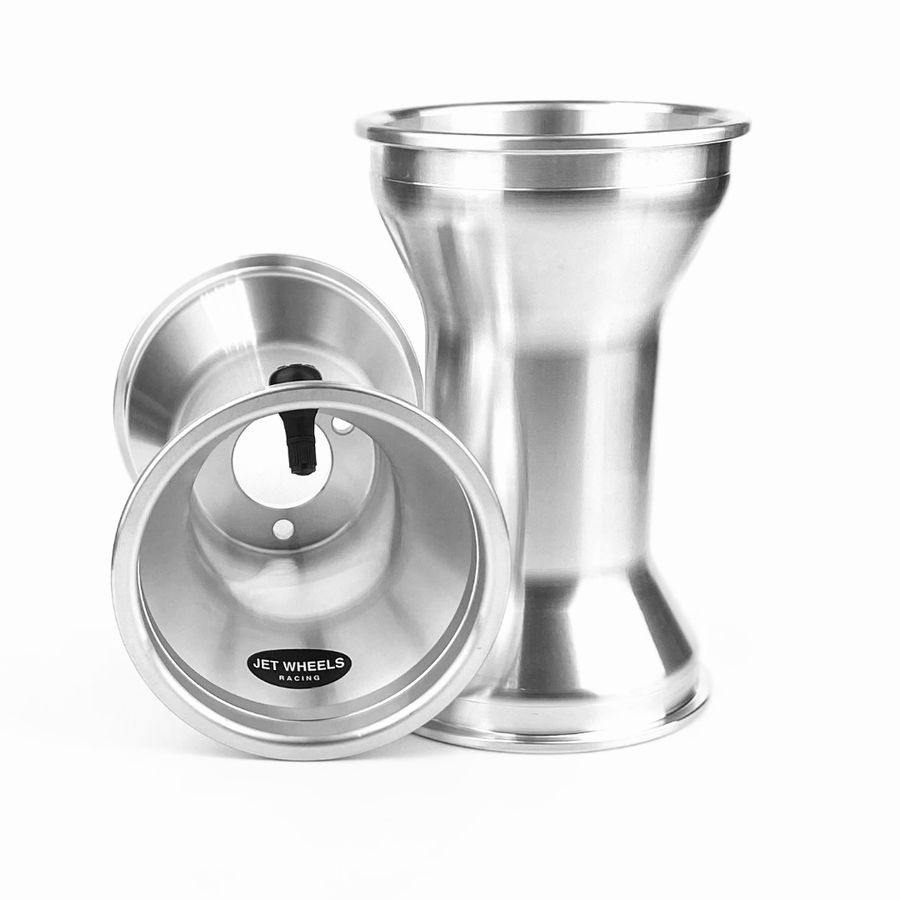

JW-210
210mm
- Width
- 210mm
- Diameter
- 5"
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers

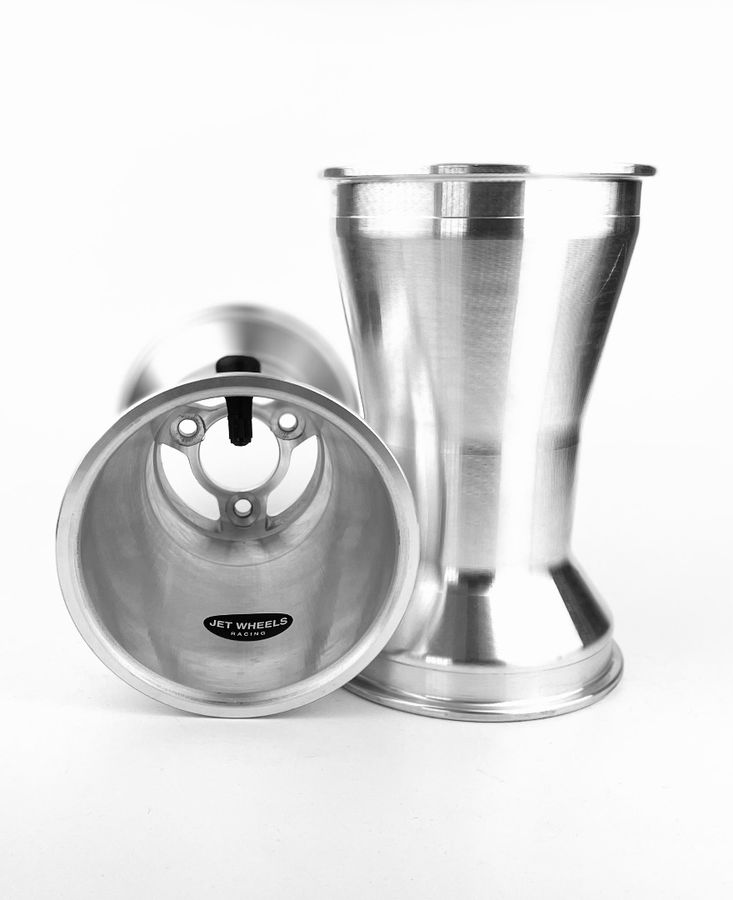

JW-210EVO
210mm 3 Spoke
- Width
- 210mm
- Diameter
- 5"
- Design
- 3 spoke
- Location
- 40mm
- PCD
- 58mm
OptionsBlack Powder CoatDrilled for Bead Retainers
Quick reference
Trade enquiry Part numbers at a glance.
Every racing rim is 5" diameter. Black powder coat is available on all of them.
| Part no. | Product | Width | Design | Bearings | Location | PCD |
|---|---|---|---|---|---|---|

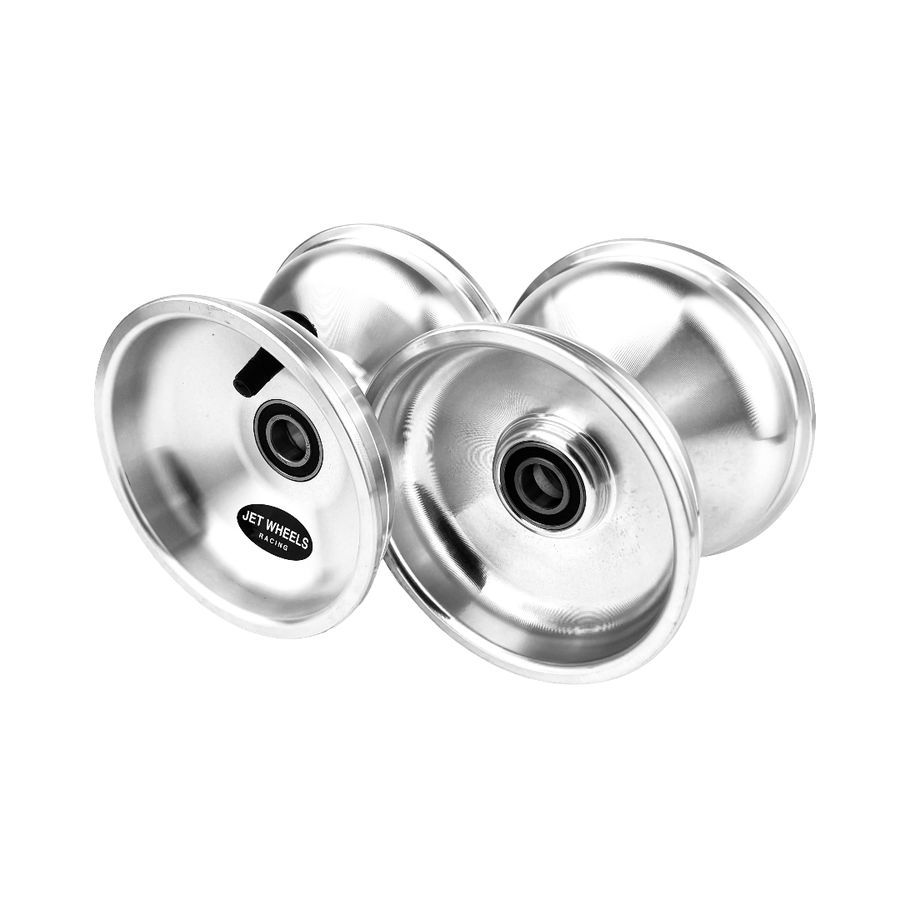

| JW-105C | 105mm Central | 105mm | – | 2 × 6003RS | – | – |

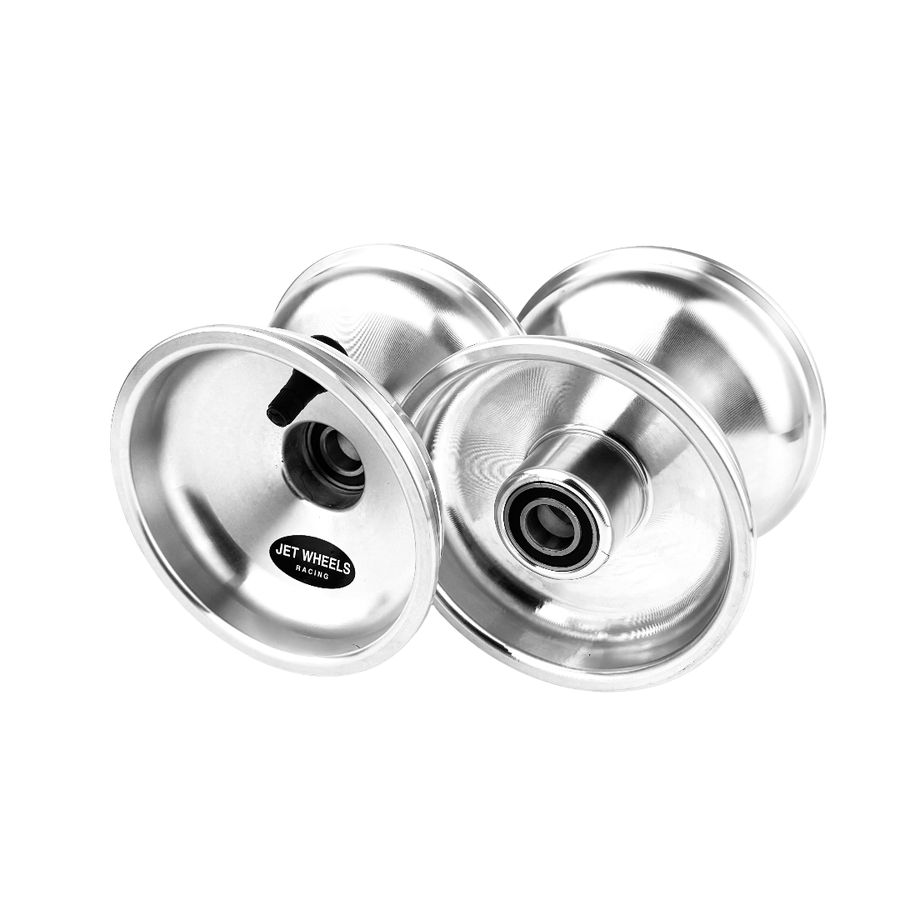

| JW-105OS | 105mm Offset | 105mm | – | 2 × 6003RS | – | – |
| JW-105SOS | 105mm Super Offset | 105mm | – | 2 × 6003RS | – | – |
| JW-115OSEVO | 115mm Offset 3 Spoke | 115mm | 3 spoke | 2 × 6003RS | – | – |
| JW-115EVO | 115mm 3 Spoke | 115mm | 3 spoke | – | 40mm | 58mm |
| JW-120 | 120mm | 120mm | – | – | 40mm | 58mm |

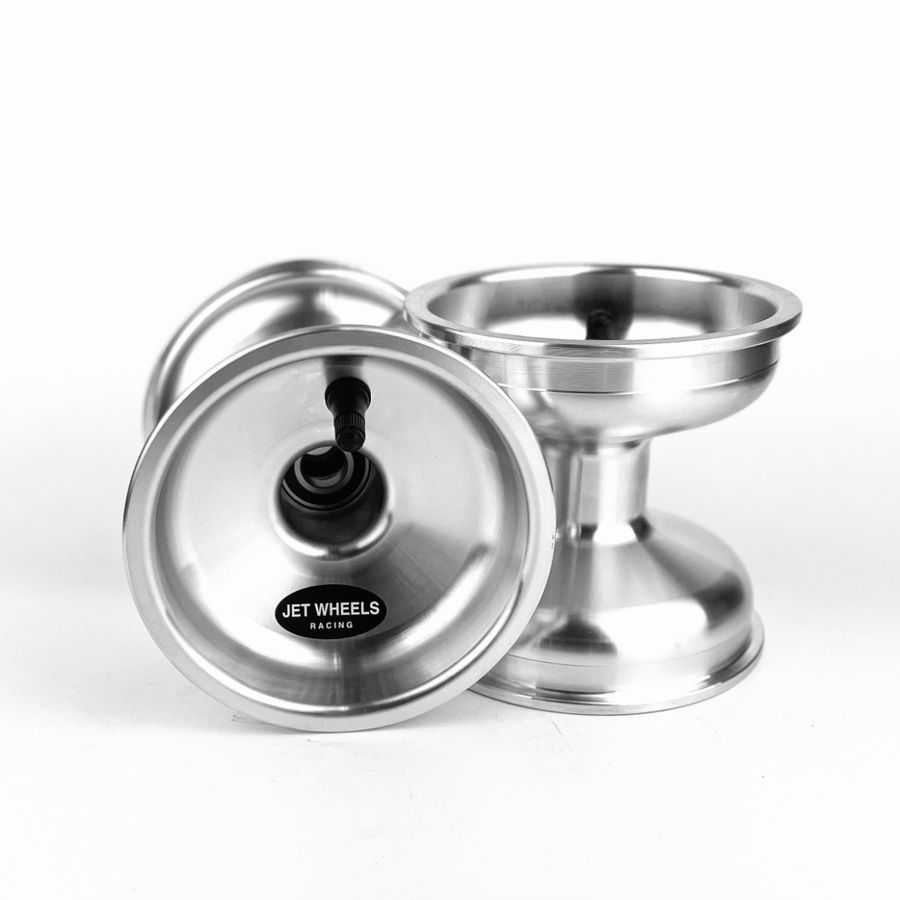

| JW-125OS | 125mm Offset | 125mm | – | 2 × 6003RS | – | – |
| JW-130OS | 130mm Offset | 130mm | – | 2 × 6003RS | – | – |
| JW-130 | 130mm | 130mm | – | – | 40mm | 58mm |
| JW-130EVO | 130mm 3 Spoke | 130mm | 3 spoke | – | 40mm | 58mm |
| JW-130OSEVO | 130mm Offset 3 Spoke | 130mm | 3 spoke | 2 × 6003RS | – | – |

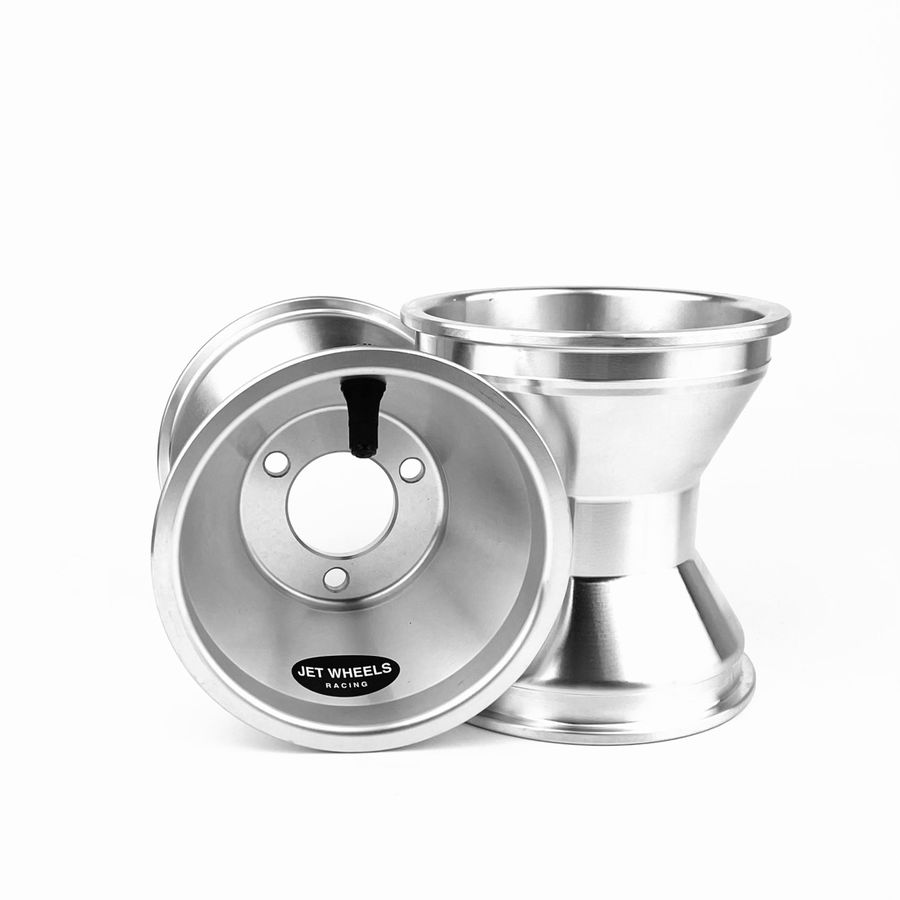

| JW-140 | 140mm | 140mm | – | – | 40mm | 58mm |
| JW-150EVO | 150mm 3 Spoke | 150mm | 3 spoke | – | 40mm | 58mm |
| JW-160 | 160mm | 160mm | – | – | 40mm | 58mm |
| JW-180 | 180mm | 180mm | – | – | 40mm | 58mm |
| JW-180EVO | 180mm 3 Spoke | 180mm | 3 spoke | – | 40mm | 58mm |
| JW-210 | 210mm | 210mm | – | – | 40mm | 58mm |
| JW-210EVO | 210mm 3 Spoke | 210mm | 3 spoke | – | 40mm | 58mm |
Talk to the factory
Trade enquiries welcome.
Kart manufacturers, shops, track operators or racers: tell us what you need and we will come back with prices, stock and trade discounts.
